에어리크테스터,기밀기,Air leak tester
문자 물품문의 ☎ 첨단마켓관리자 문의: 070-4345-9885
- 제조년월
: 2018
- 재고상황
-
:
- 세금계산서
-
:
- A/S정보
-
:
에어리크테스터,전문메이커가 공급하는 국산 기밀시험기 입니다.
터치판넬로 조작을 콘트롤합니다.
▶모든봉합물체는 바늘구멍만한 두께의 틈이 있어 하자처리됩니다.
▶그런데 하자난 물건을 불량으로 잡아내지 못하는 경우 발생합니다.
▶정밀하지 못한다거나 ,측정 방법이 없기 때문일수 도 있습니다.
▶에어리크테스터는 기밀시험측정을 정밀하게 할수 있습니다.
상담문의 : 010-3241-5434
계통도면입니다.
▣ This testing machine is a measuring device that tests leakage, such as products or parts, using air.
Test conditions can be developed according to the test conditions, such as shape and materials of products or parts, and the method of measurement can be freely selected through the low-pressure inspection and the high-pressure inspection.
▣ This tester shall be subjected to a low pressure test of 0.1 to 2Kg/㎠. In case of a high pressure test, you can freely select between 2 and 8Kg/㎠ . to expand your selection and use it in various areas.
▣ During the low pressure test and high pressure test, it is controlled by a high-precision regulator to optimize temperature change (- 5 to 60 ℃) and pressure (0.1 to 0.8Kg/㎠).
▣ Tests above 10 Kg/㎠ of air pressure may be produced separately (0 to 17 Kg/㎠).(Optional)
▣ You can save test data internally and print it as a report.(Optional)
▣ One jig shall be used for each test device. Up to two jigs, depending on the type of product
and part.(Optional)
▣ This testing machine is a measuring device that tests leakage, such as products or parts, using air.
Test conditions can be developed according to the test conditions, such as shape and materials of products or parts, and the method of measurement can be freely selected through the low-pressure inspection and the high-pressure inspection.
▣ This tester receives real-time data on RS485 and processes them to the touchscreen.
The touchscreen has the ability to determine a pass or fail based on the function.
▣ This tester adopts the Mitsubish PLC, which optimizes the measurement of PLC and Indicator
communication on the touch screen at least eight times per second.
▣ This tester can make a clear distinction between a passed and a rejected product.
Parts of a passed product shall be subjected to a buzzer sound and the jig is released,
making it easier to insert parts of the next product.
The parts of the failed product shall be pronounced by buzzer and the jig shall remain fixed until
the operator's treatment.
In addition, one red and green lamp turns on to easily identify components of products that have
passed or failed.

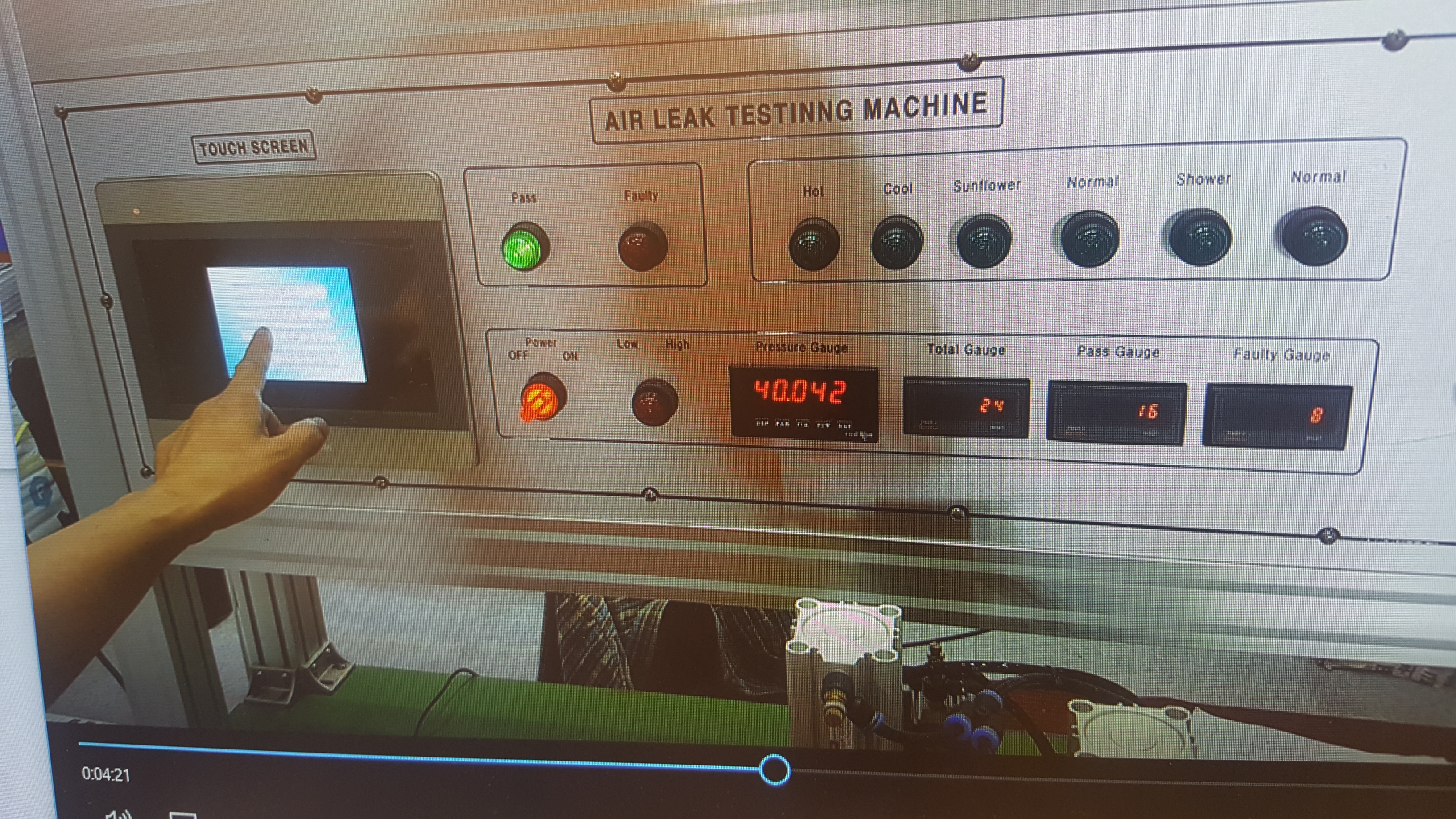

▣ Table 5 Photos are primarily controlled by part, allowing operators to see the progress
of the test directly. *Table5 photo: Main Control Panel Photography
▣ This product allows operators to enter additional product models for easy management in the future.
▣ Depending on the product, you can enter operators to increase the responsibility of the manufacturer
when producing the products.
◈ Machine Specifications
◎ Power : 220V 2 Line Use
◎ Machine weight : About 60kg
◎ Mechanical data : 1200mm * 900mm * 2000H
◎ Mechanical material : Aluminium Profile and PVC Bay
제품상담 : 010-3241- 5434
각 부위의 기능입니다.
●특징
▶모든공정을 터치스크린 및 본체 명판에 표시하도록 제작
→ 작업자가 긴공정의 테스트에서 시험 진행상황을 확인 할 수 있도록 작업안정성과 편리성도모
▶터치스크린기능에 따라 양품·불량품에 대한 정확한선별
→ RS 485통신 에 다른 실시간 테이터전송
▶인디게이터통신속도 초당 8회 이상
→미쯔비시 PLC채택 검사값의 최적화 도모
▶합격제품의 명확한 구분을 위한 부저 완료신호음 발생
→작업진행 사항을 빠르고 바르게 인식할수 있어 다음 작업 세팅을 자신감있게 진행할수 있음
▶불합격 제품의 경보음발생 및 유지
→작업자의 불량처리 까지 지그가 고정되어 있어 불량품 양품의 혼용을 방지할수 있음
→합격과 불합격여부는 적색 ·녹색 램프로 정확히 표시
●특징
▶파트별 진행상태를 작업자의 눈으로 직접확인할수 있음
▶제품모델의 추가입력 가능 - 타종제품생산시 관리의 용이성 제공
▶작업자 입력 기능- 제품생산시 생산자의 책임감 고취 및 측정하자 발생시 원인 파악용이

기밀시험이필요한 피측정 생산품:1 반도체 공정 및 장비
●특징
▶다양한 부품과 제품의 기밀시험 및 측정
▶부품의 형상 재질에 최적화된 기밀시험조건파악 제작
▶저압 ,고압 검사 까지 기밀시험대상물 측정범위의 자유로운 선택
▶저압 : 0.1~2kg/cm2 까지 ,고압검사 2~8kg/cm2 까지 선택 - 사용자의 선택범위 및 다양한 형상 측정시용이
▶고정밀 레귤레이터 제어방식 -온도변화 (-5~60℃),압력 (0.1~0.8kg/cm2)
▶옵션가능
*에어압력 10kg/cm2이상의 시험은 별도 사양으로 (0~17kg/cm2)까지 제작 가능
*시험데이터의 내부 저장 -성적서로 출력하여 제출가능
*기밀시험기한대에 멀티 지그탑재 가능
